Pre-Wired 24V Kit

About This Product

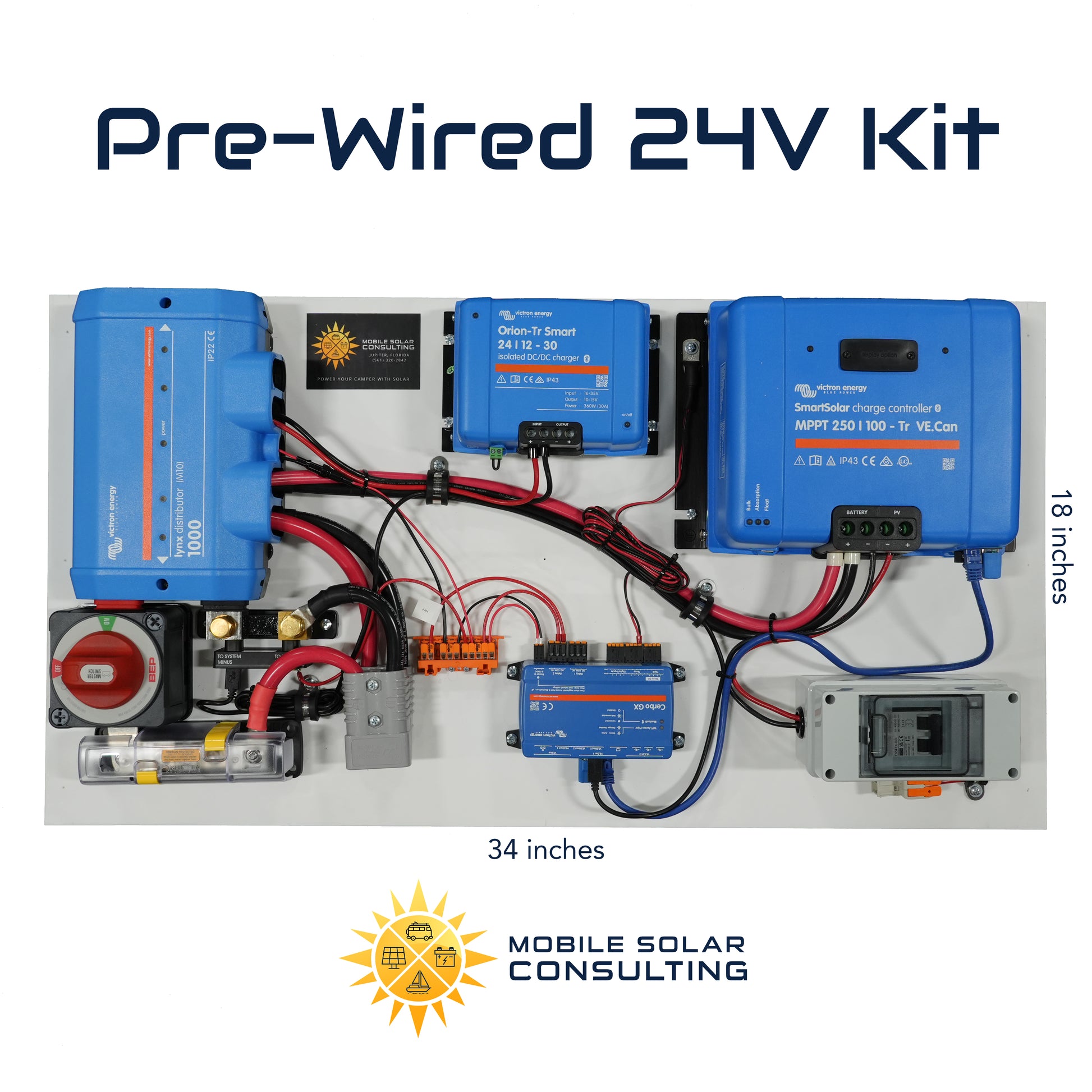

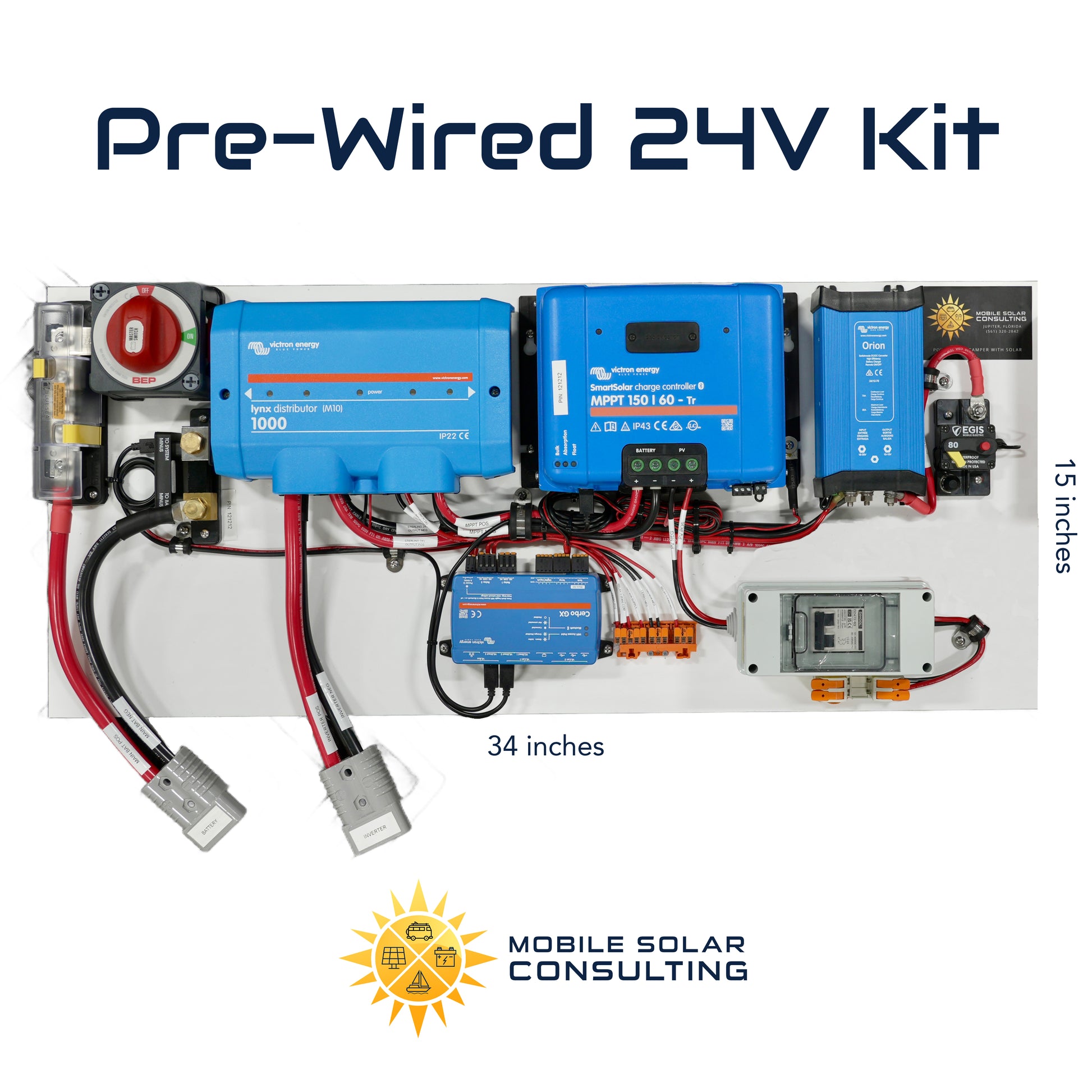

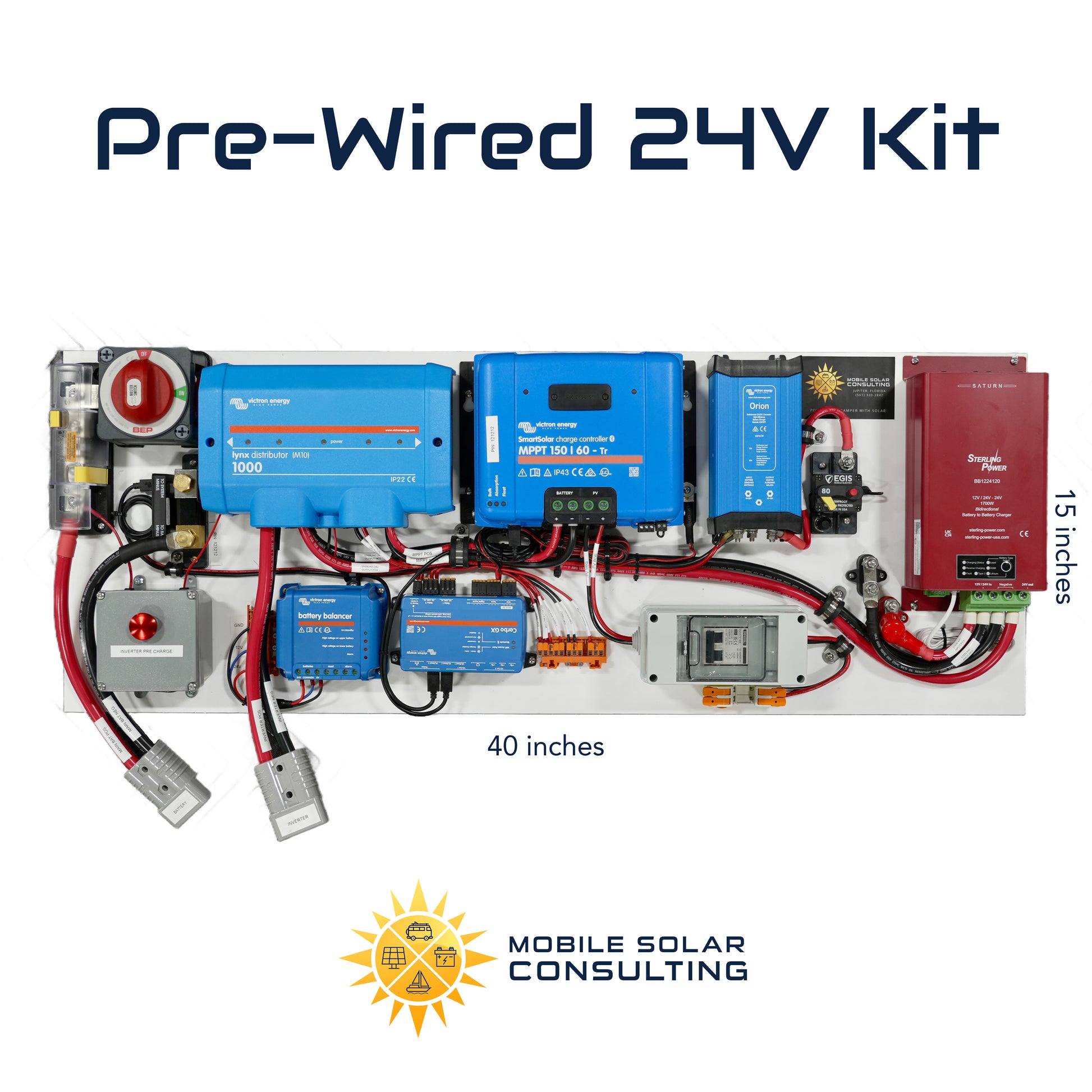

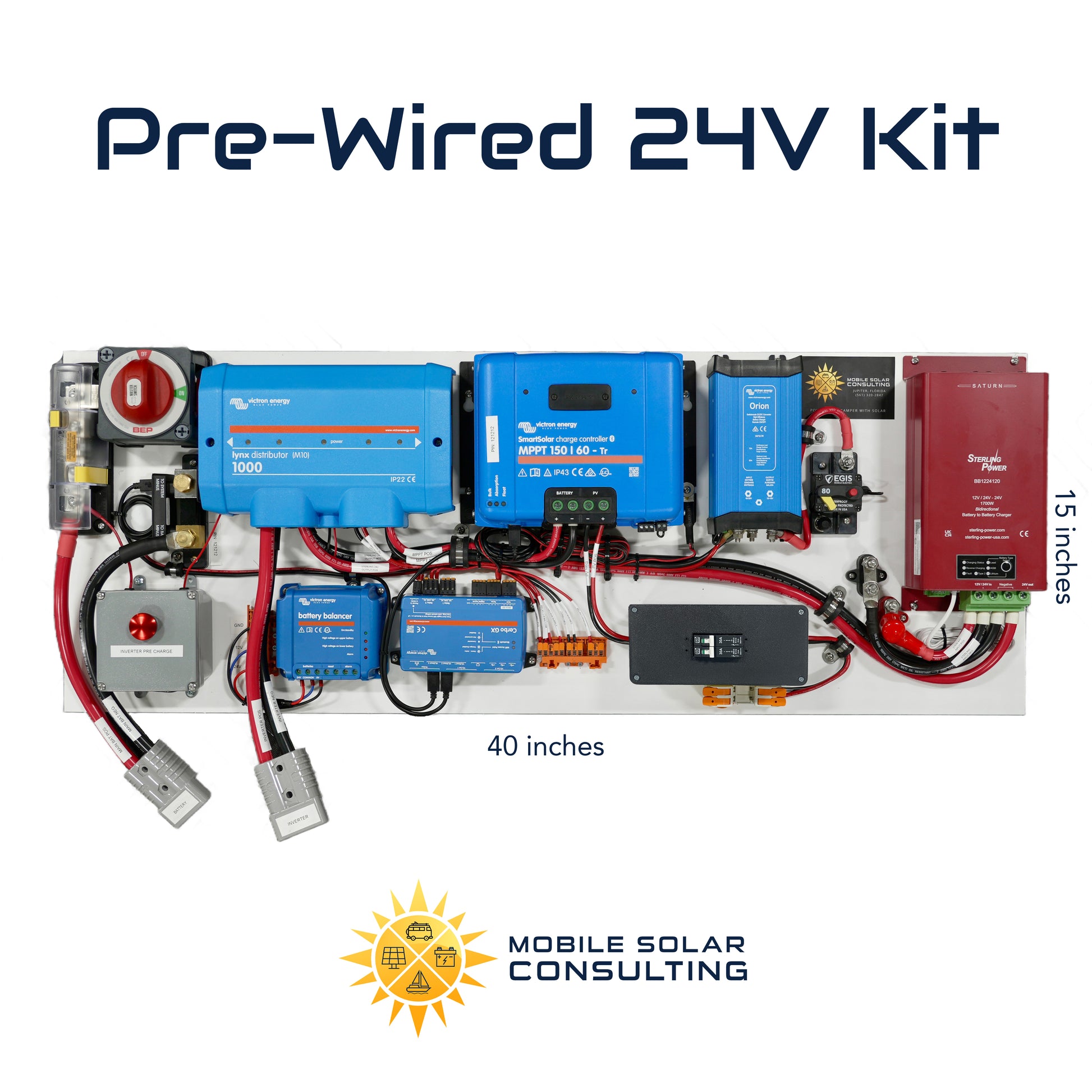

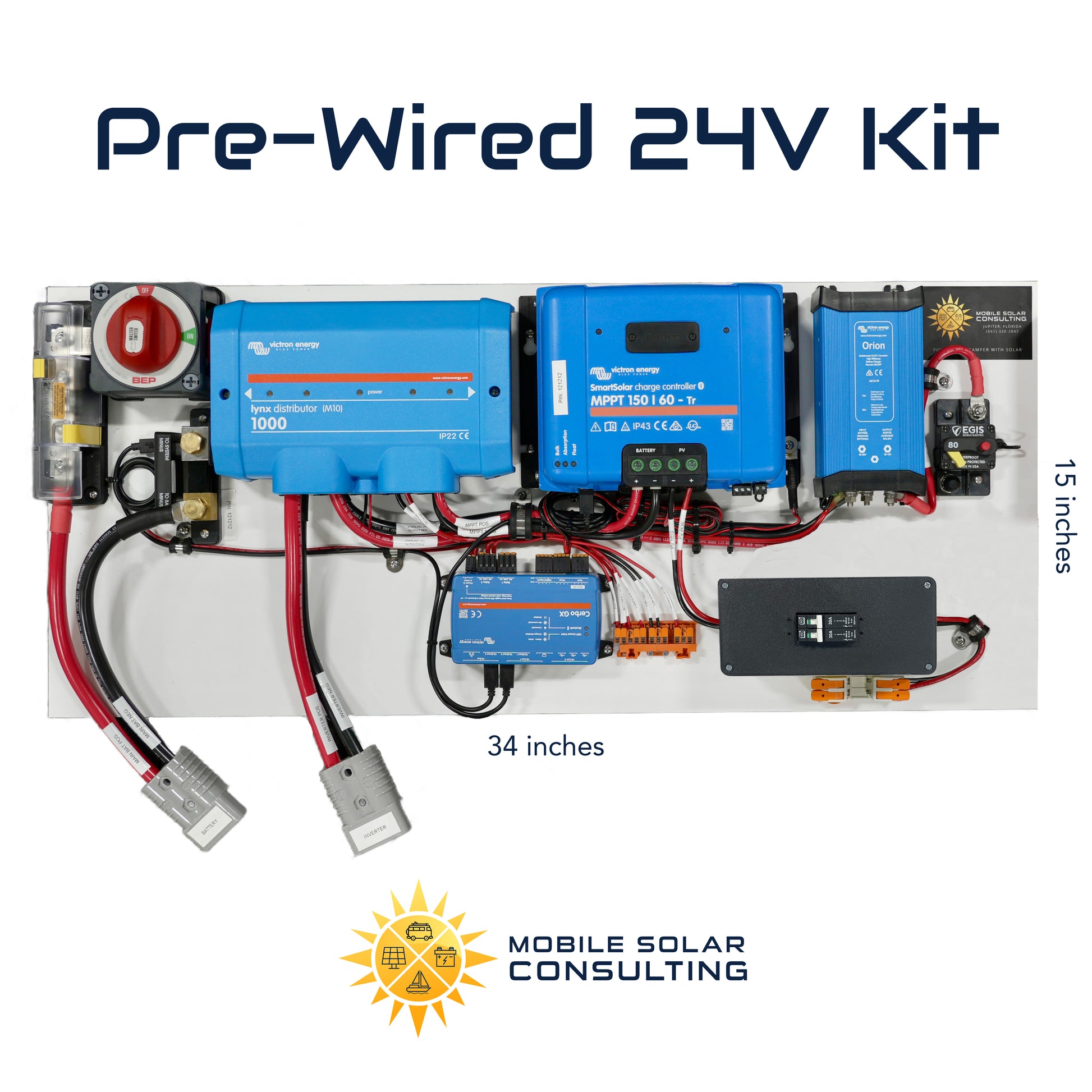

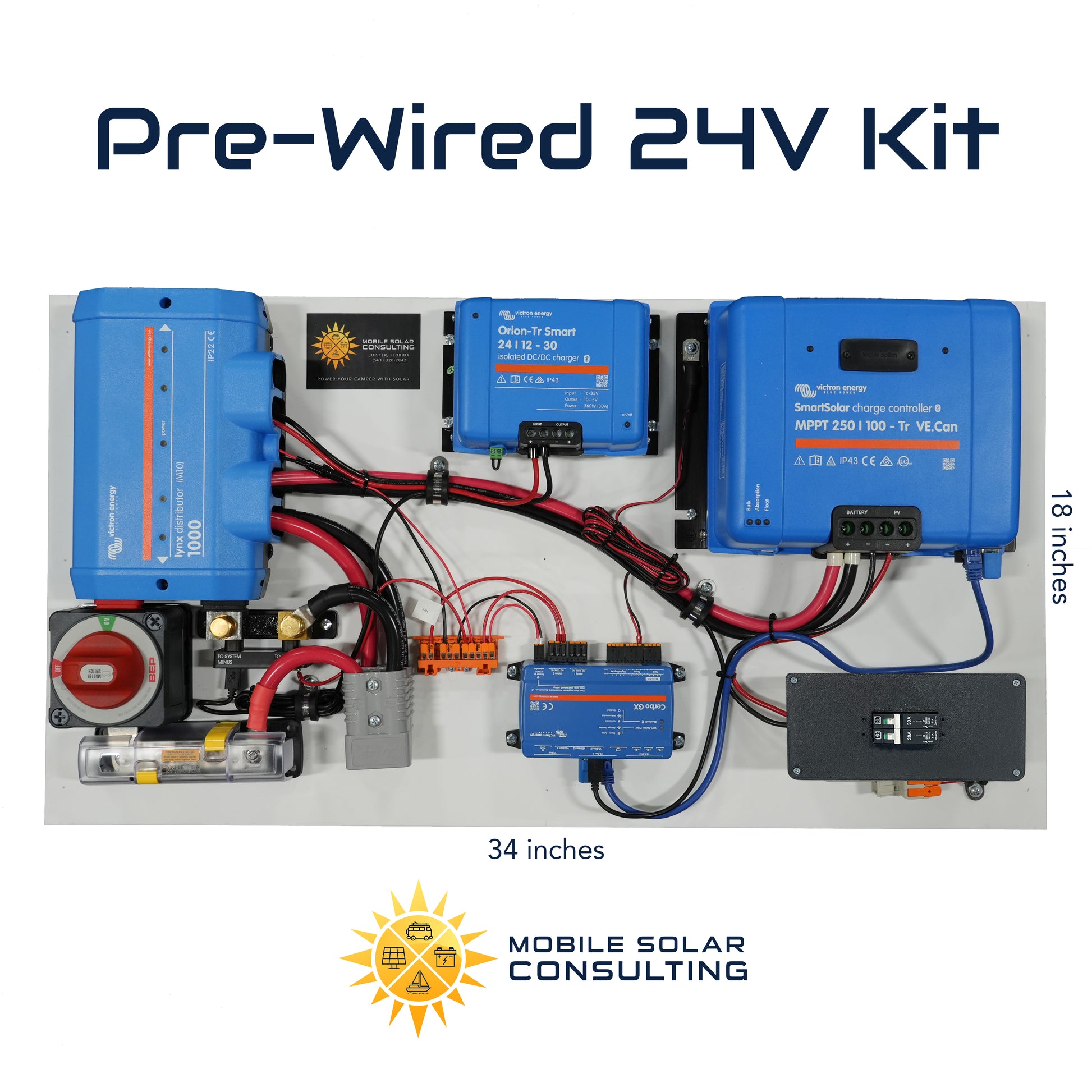

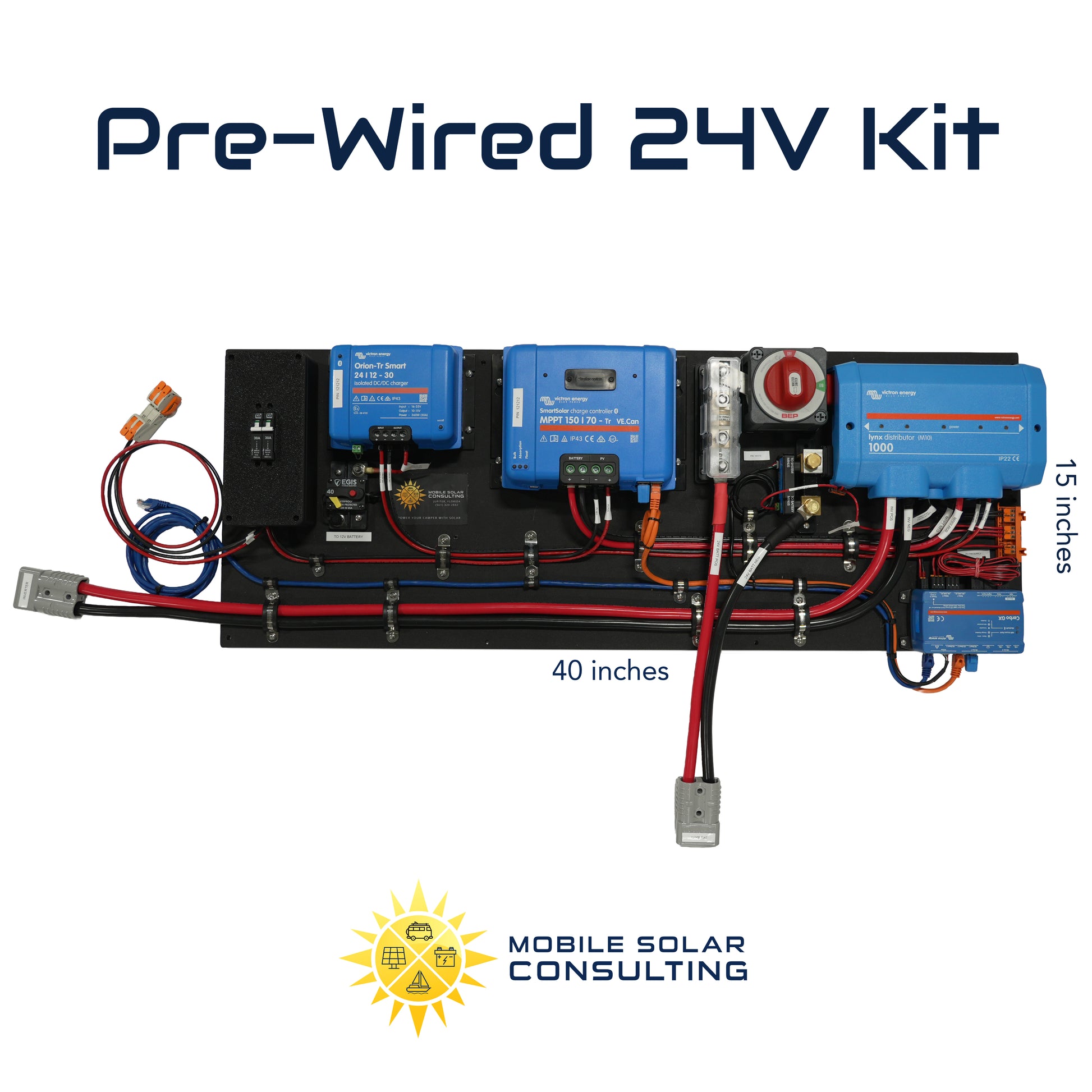

Is it possible to install a Victron system in an under hour? It is now. Simply screw this board into the wall, plug in your Anderson connectors, and slip your remaining connections in place onto the pluggable connectors – no crimping required. For those looking for the ease of install of a power station but the functionality, expandability, and monitoring capabilities of Victron, this is an easy decision. Choose your MPPT (based on your solar array size) and desired touch screen size. This board comes pre-wired with an inverter, pre-programmed, and bench tested. Ships free to the lower 48.

Add a battery balancer when using 12V batteries in series. Add a pre-charge resistor when using only one 24V battery or two 12V batteries in total.

We’ve done the hard work. The only thing left is for you to connect a few male/female connectors, and pop some wires into lever-style connections. Remaining install process includes:

• Secure to a wall, floor, or ceiling
• Landing 120/240V SOOW or Romex wires on the 4-pin pluggable connectors (no crimping - lift the lever and slip into place)
• Landing included wires on your factory 12V battery or bus bars (pre-terminated with 3/8” Ring Terminals)
• Landing solar wires on the 2 pin pluggable connectors (no crimping – lift the lever and slip into place)
• Landing ventilation fan wires on wago connectors (optional – no crimping – lift the lever and slip into place)

**Batteries and Solar Panels Sold Separately**

This kit is universal, meaning it can work with nearly any RV, nearly any battery type, and nearly any solar array. Contact us for a customized kit if none of the pre-configured options work for you. Not sure what you need? We can help!

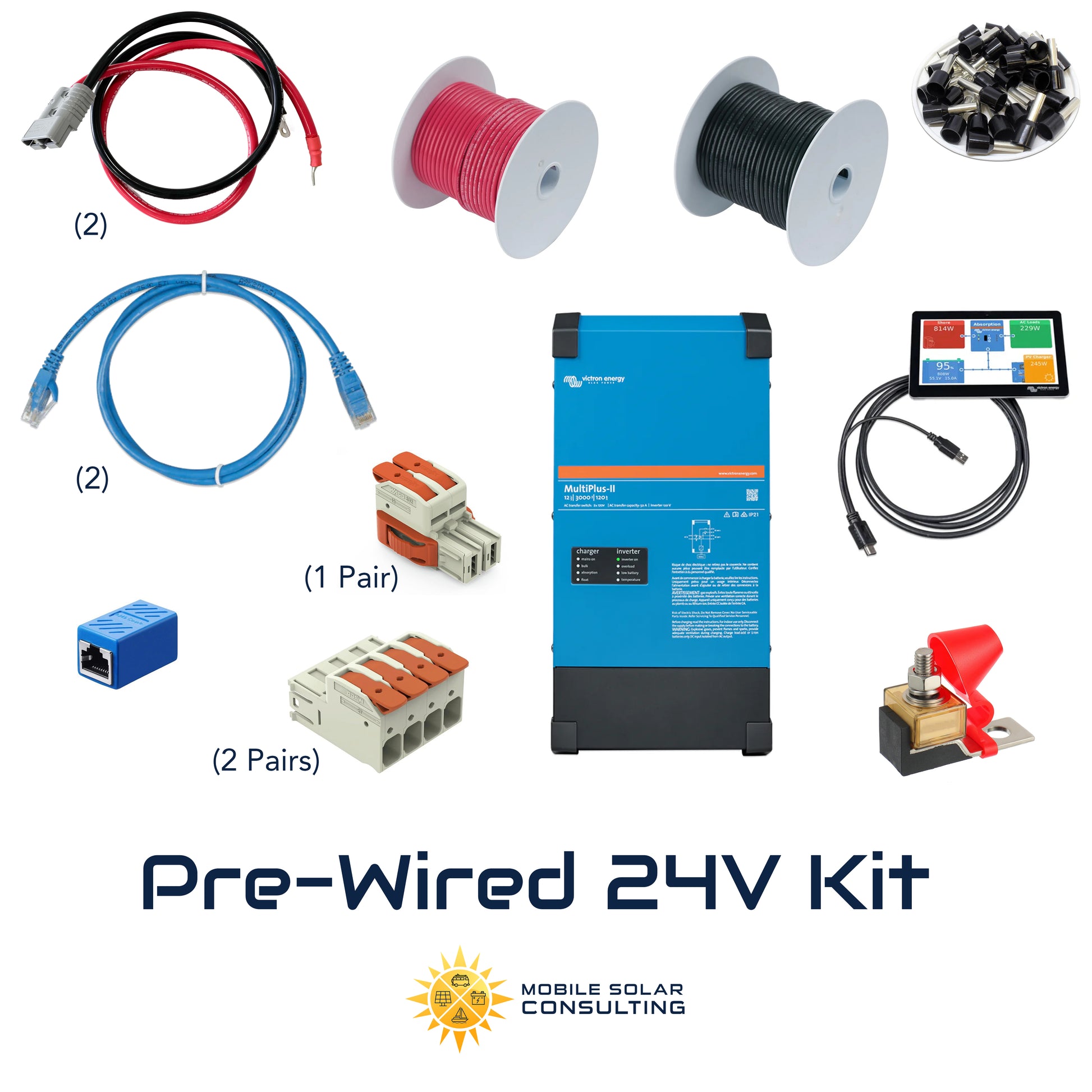

Unless otherwise arranged, this kit comes with the following wire lengths:

• 4ft Length 6 AWG 4-Conductor SOOW Cables with WAGO Pluggable Connectors for Inverter 120/240Vac Connection
• 4ft Length 1/0 AWG Main Battery Cables with 5/16" Lugs and Anderson Connectors
  • Charger Option: 25ft Spools of Red and Black 10 AWG Wire, with 3/8" Ring Terminals Pre-Crimped (for 12V Battery Connection) + 40A Fuse & Holder
  • OR
  • Converter Option: 25ft Spools of Red and Black 6 AWG Wire, with 5/16" Lugs and a 2-Post Busbar (for 12V Battery Removal) + 80A EGIS Breaker
