MEGA 50 | 50 Watt Solar Panel | Compact 12V Off-Grid Solar Panel

About This Product

Features

• 12V off-grid solar panel.
• 0~+5W guaranteed positive power output.
• IP 65 or IP 67 rated.

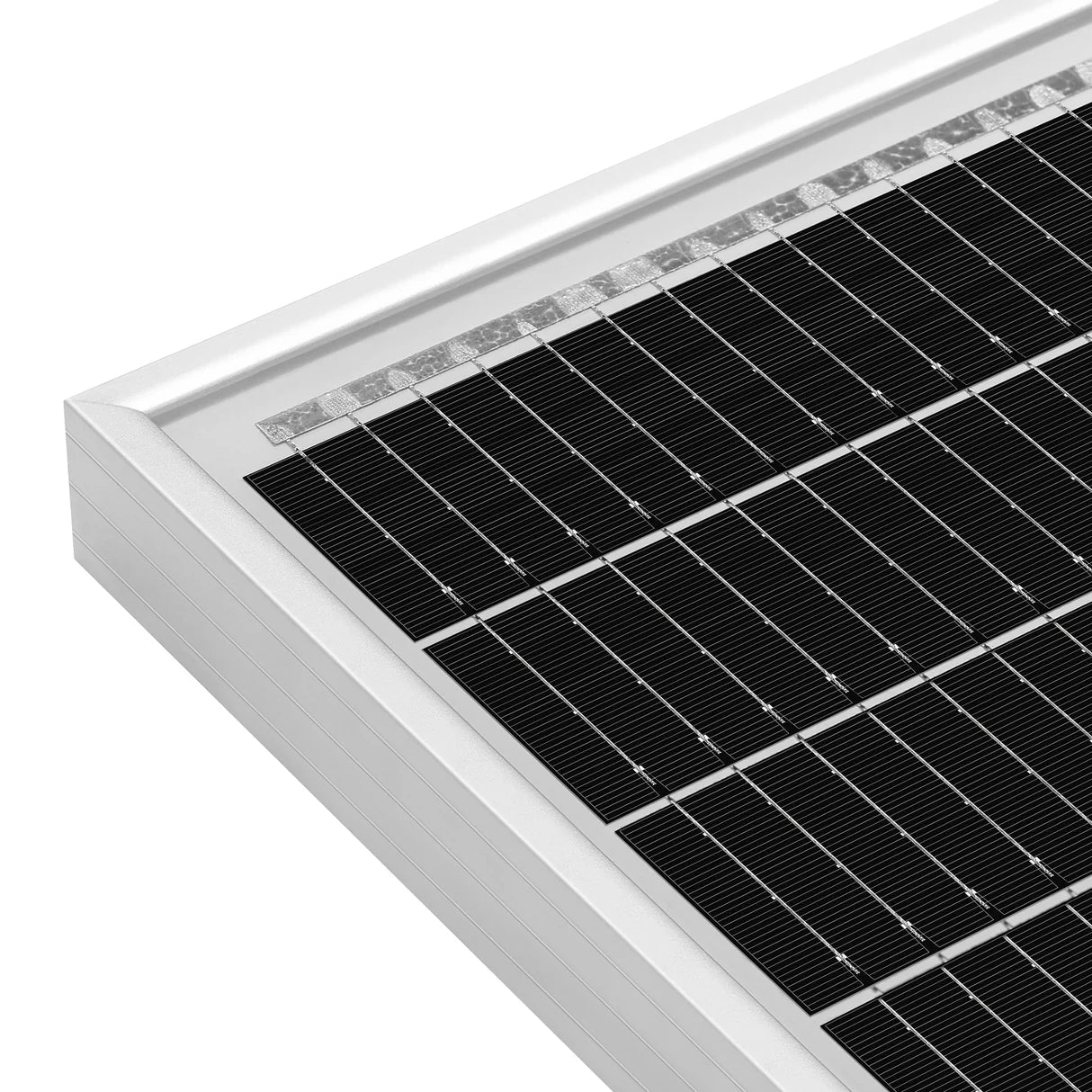

• Built with strong tempered glass and aluminum frame.
• Certified to withstand challenging environmental conditions.
• Excellent low-light performance on cloudy days, mornings, and evenings.

Installation

• Easy installation and handling for various applications.

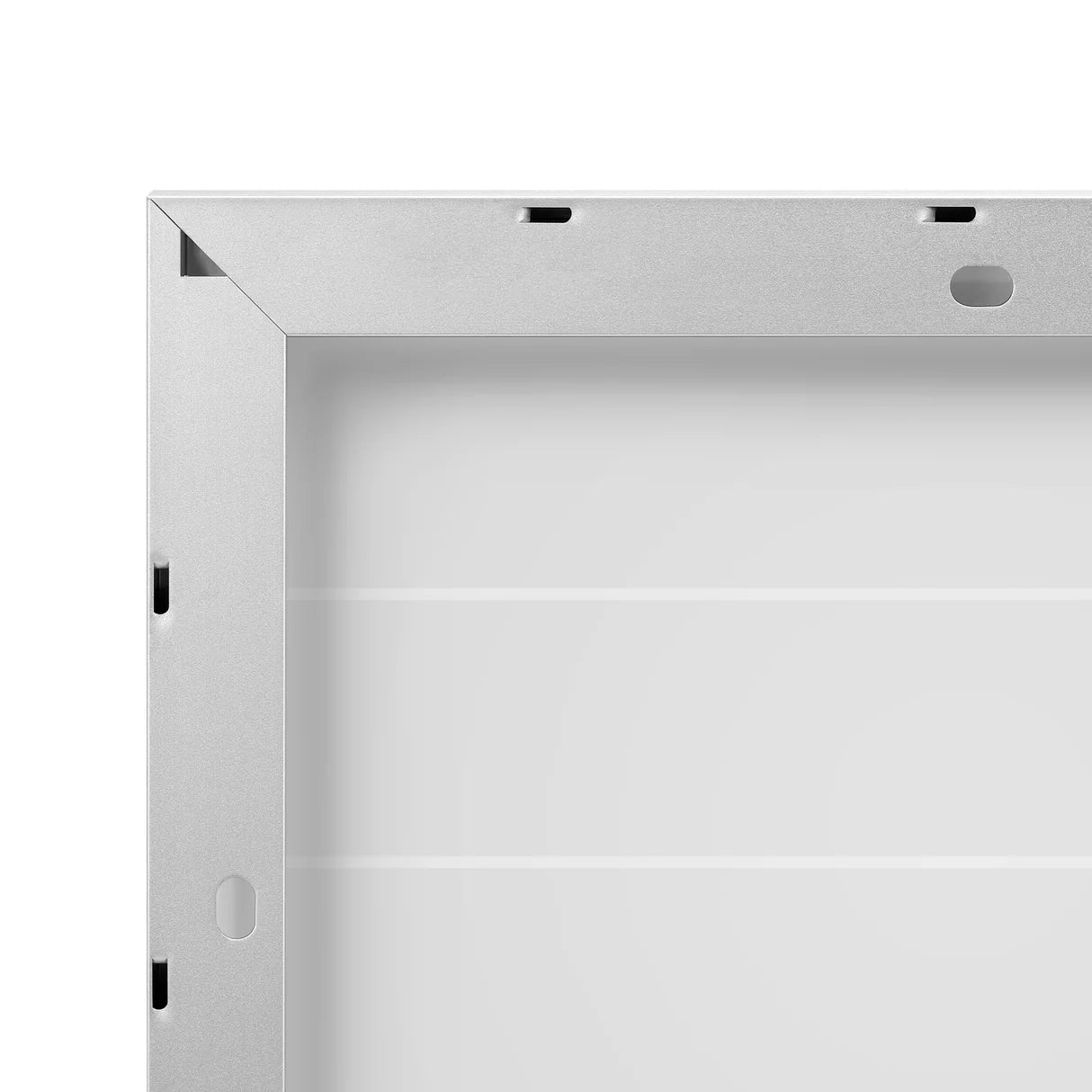

• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Warranty

• 25-year power output warranty.
• 10-year workmanship warranty.

Built-in Components

• 50W Solar Panel
• Panel Leads (Pair): 12AWG 2FT

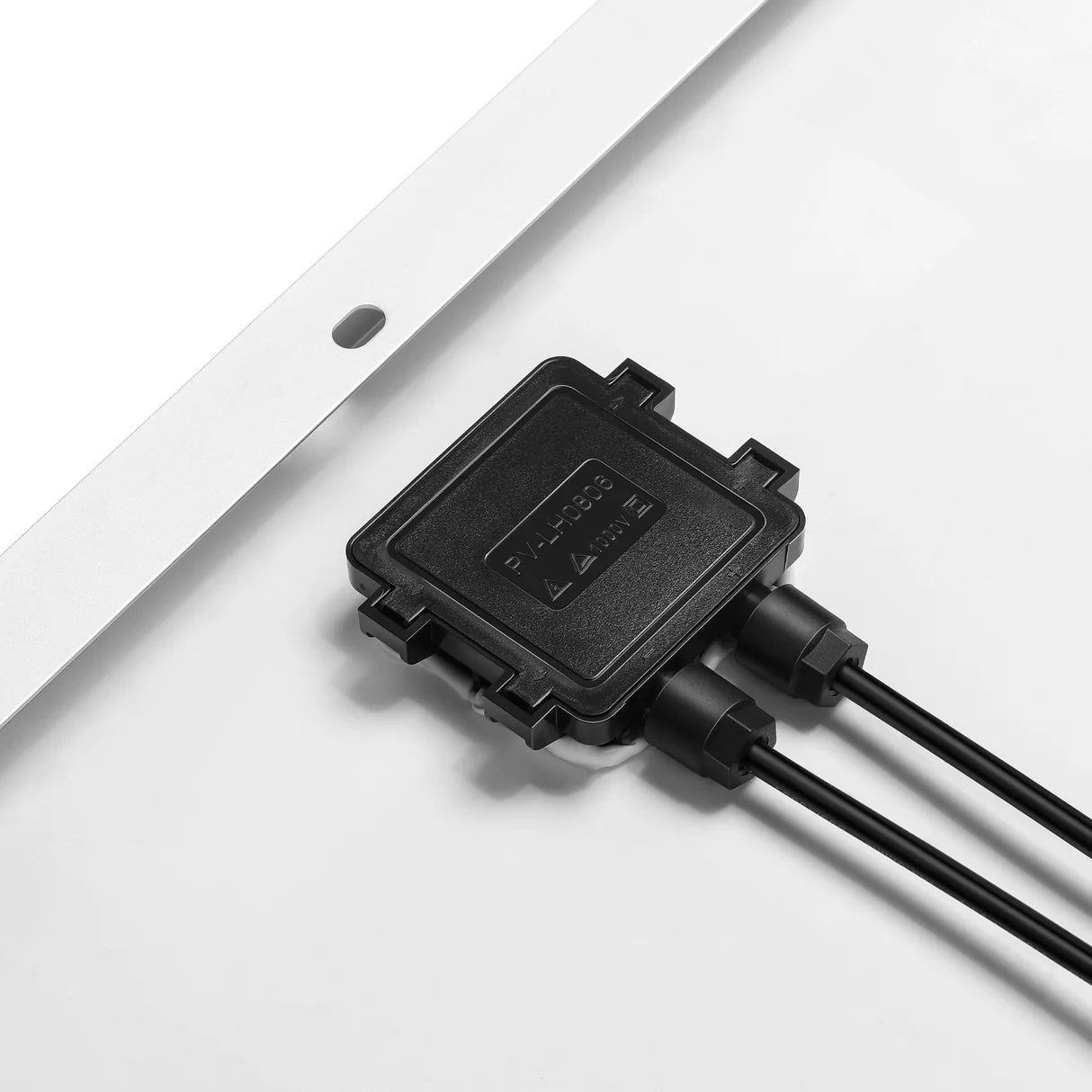

• IP65-rated waterproof junction box
• IP67-rated waterproof solar connectors

Specifications

• Maximum Power(Pmax): 50W
• Maximum Power Voltage(Vmp): 17.1V
• Maximum Power Current(Imp): 2.92A
• Open Circuit Voltage(Voc): 20.1V
• Short Circuit Current(Isc): 3.22A
• Maximum System Voltage(Vmax): 1000VDC
• Maximum Series Fuse Rating: 10A
• Weight: 7.5 lb
• Dimensions: 22.8x20.5x1.2in
