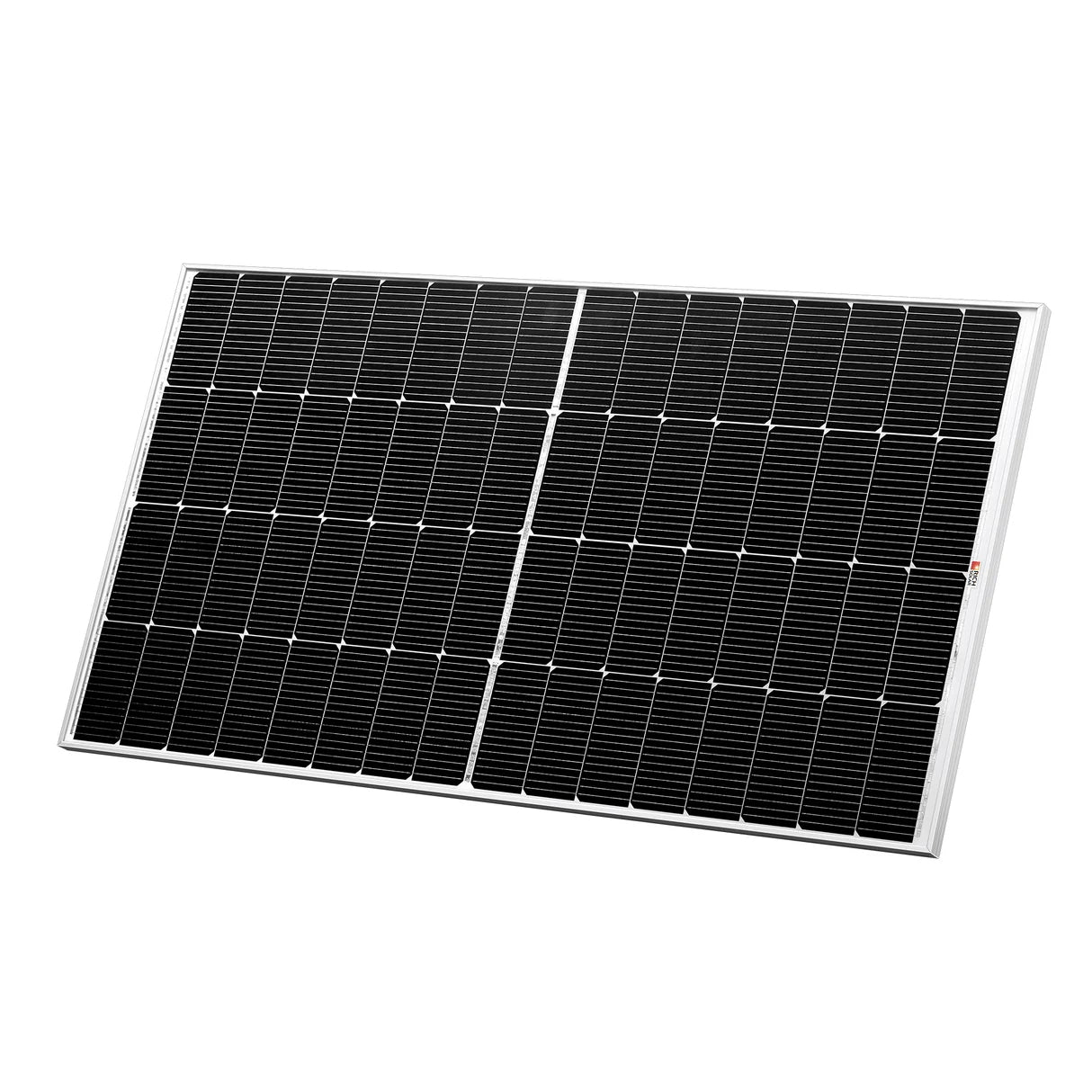

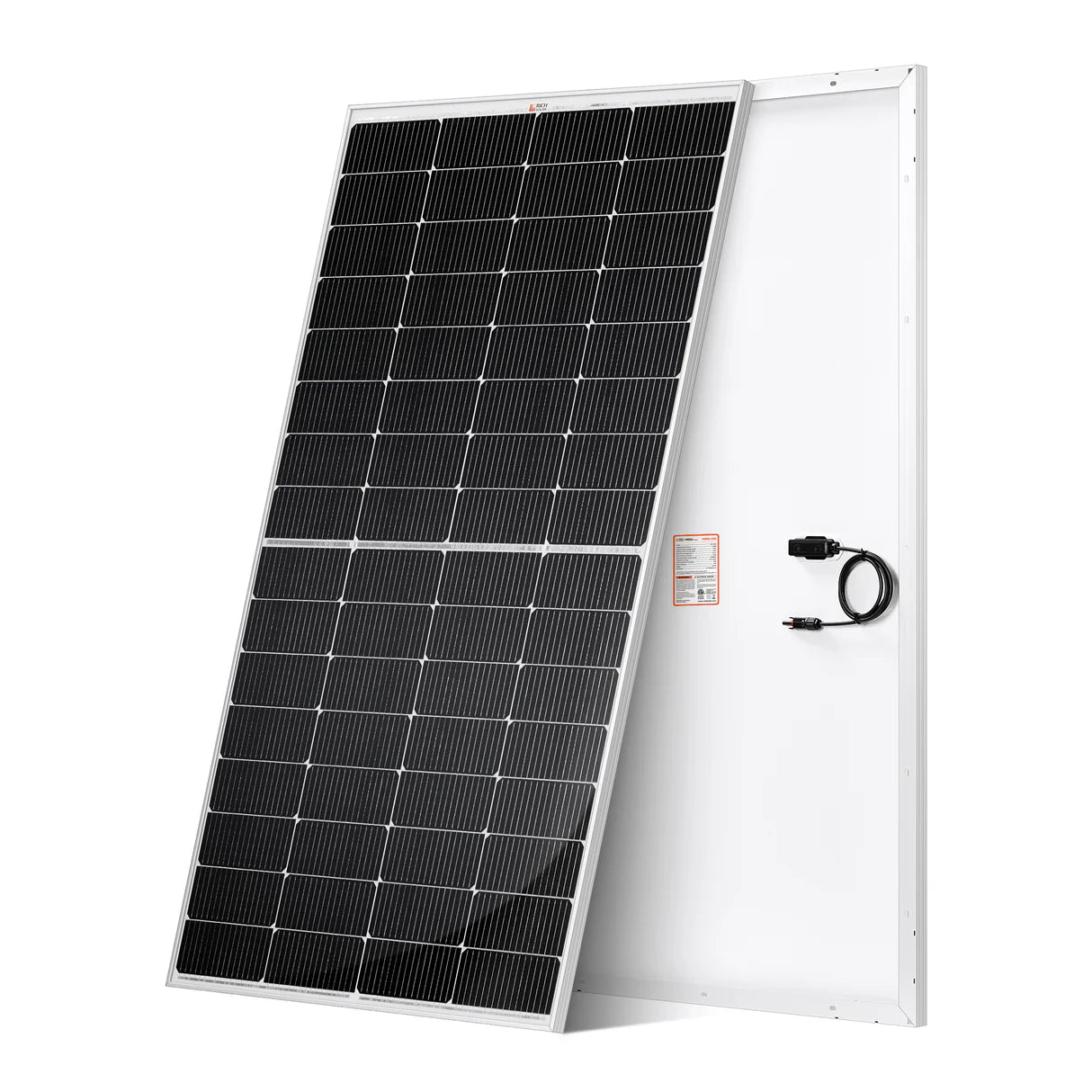

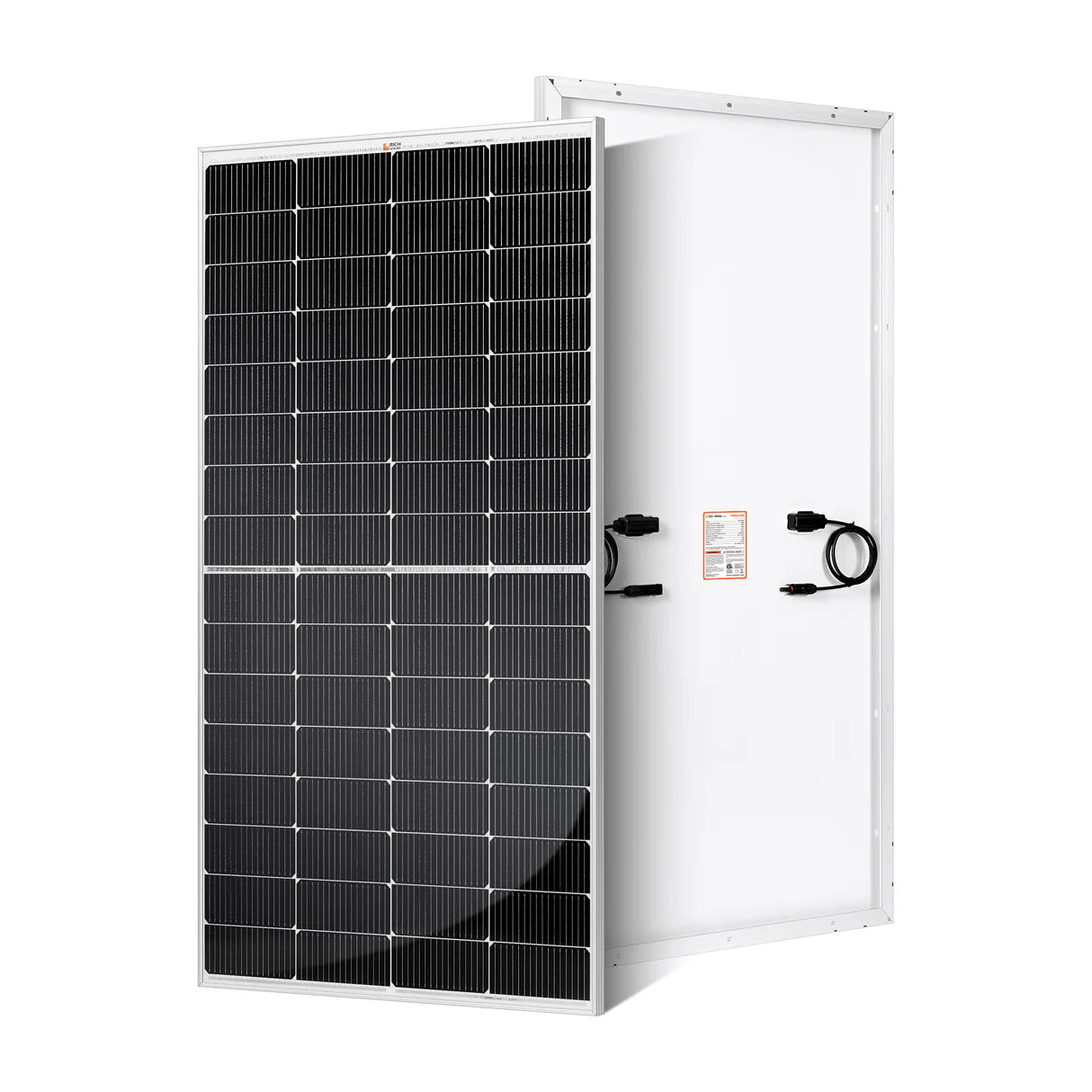

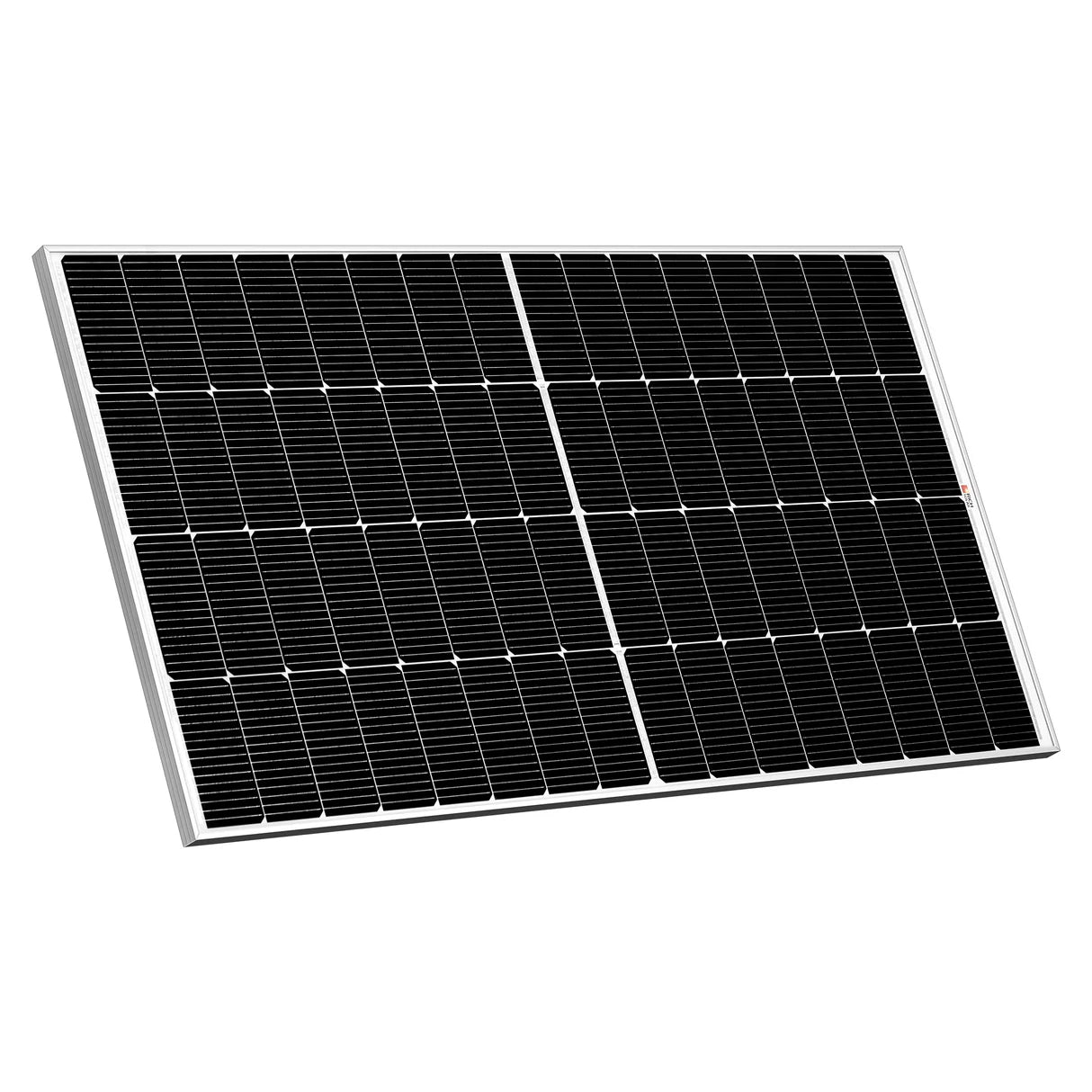

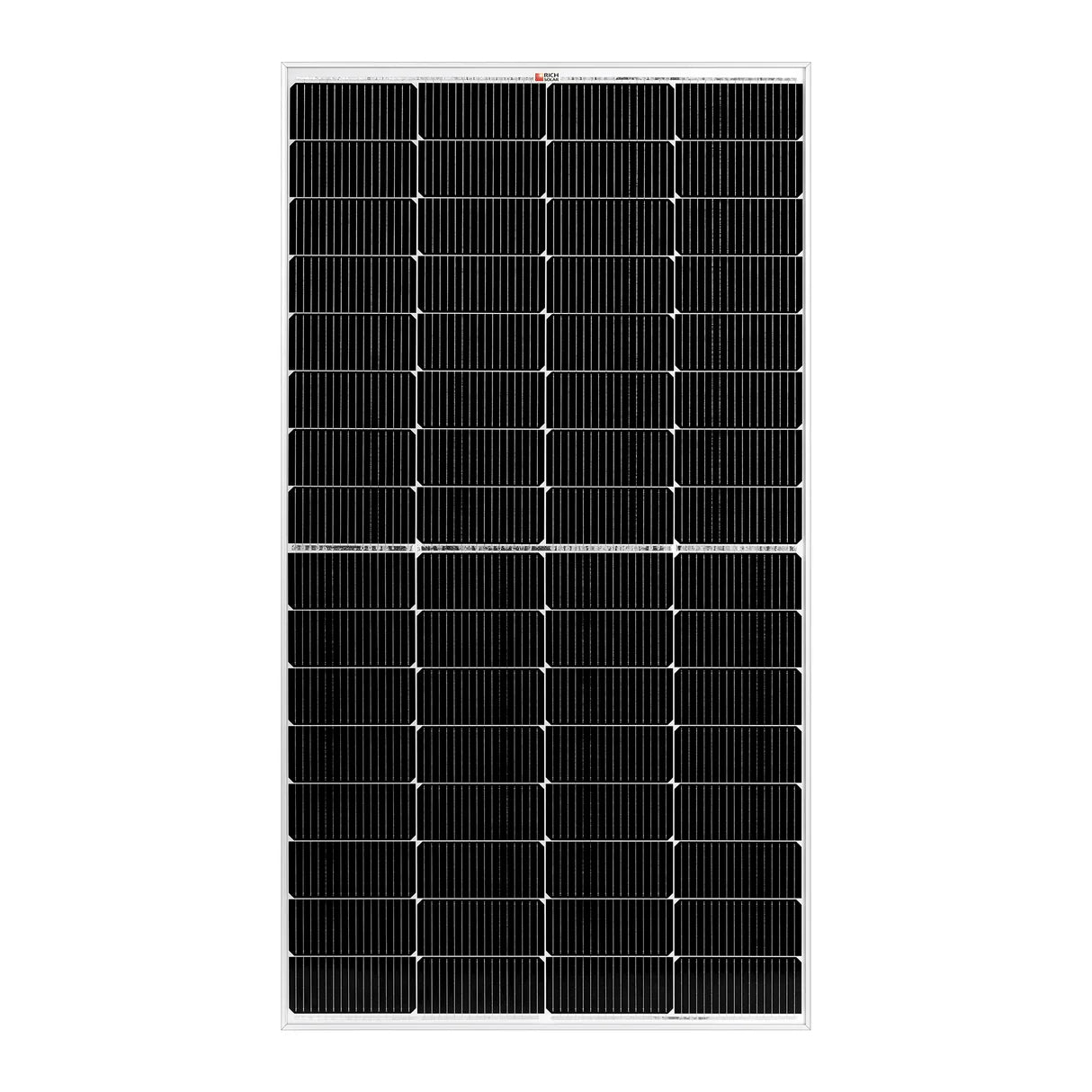

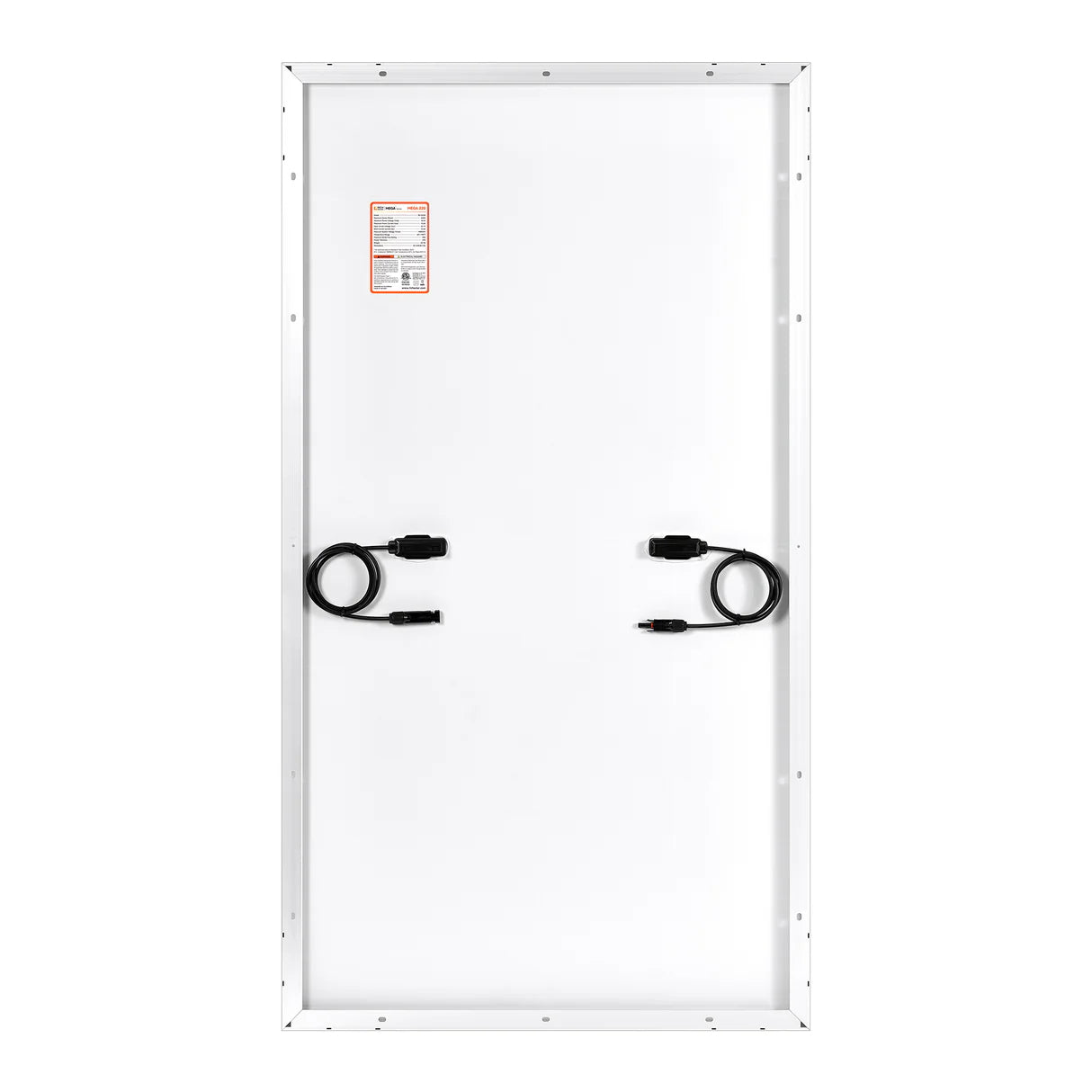

MEGA 220 | 220 Watt Solar Panel

About This Product

Features

• 15-busbar solar cell configuration.

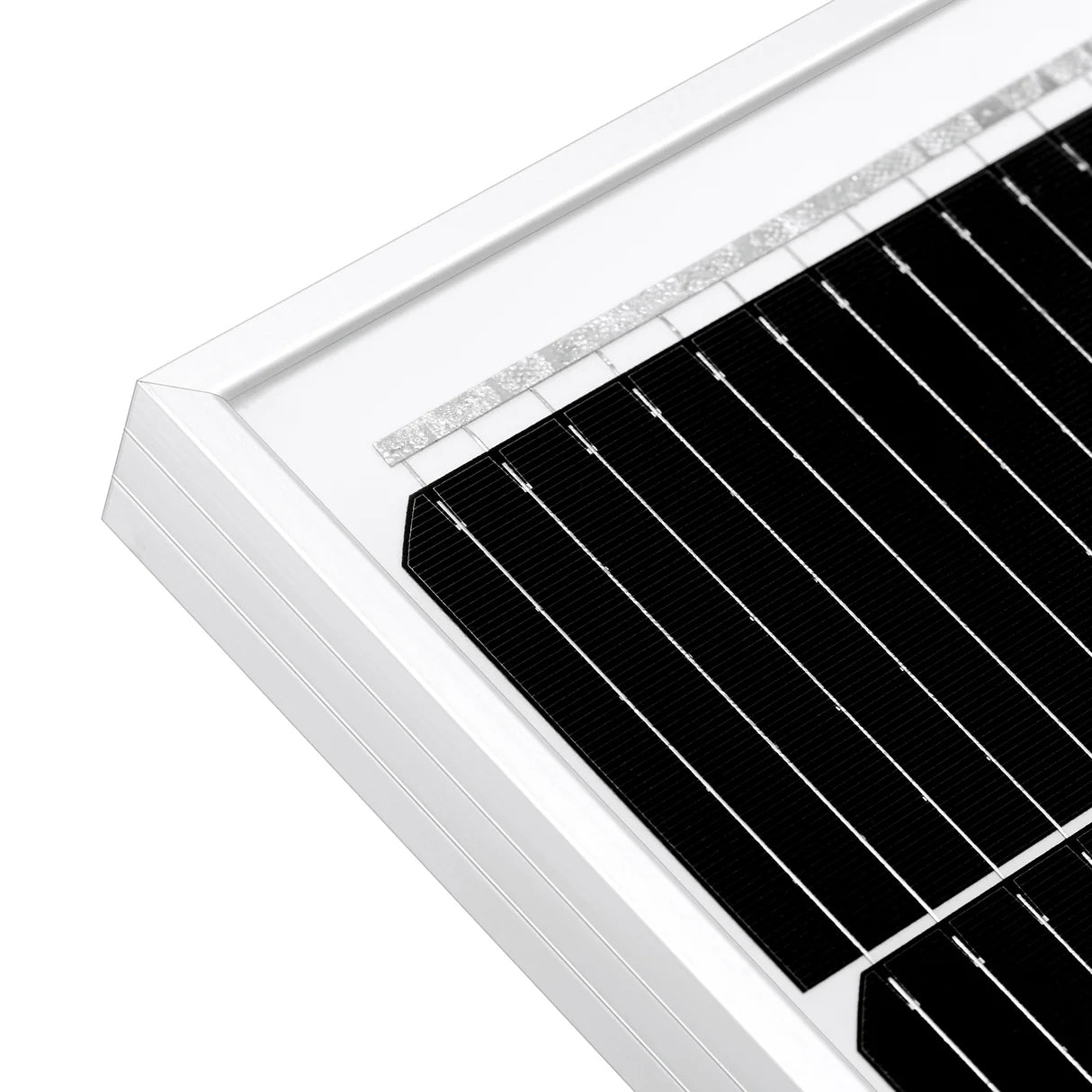

• Lightweight, anodized aluminum frame.
• High Transmission, AR (anti-reflective) Coated Tempered Glass.
• Plug-and-play junction box.
• Industry standard quick-connect cables work in series or in parallel.
• Excellent low light performance on cloudy days, mornings and evenings.
• Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection).

• Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h).

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications).
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.


Warranty

• 25-year output warranty
• 10-year workmanship warranty

Built-in Components

• 220 watt solar panel
• Panel leads (pair): 3 feet each

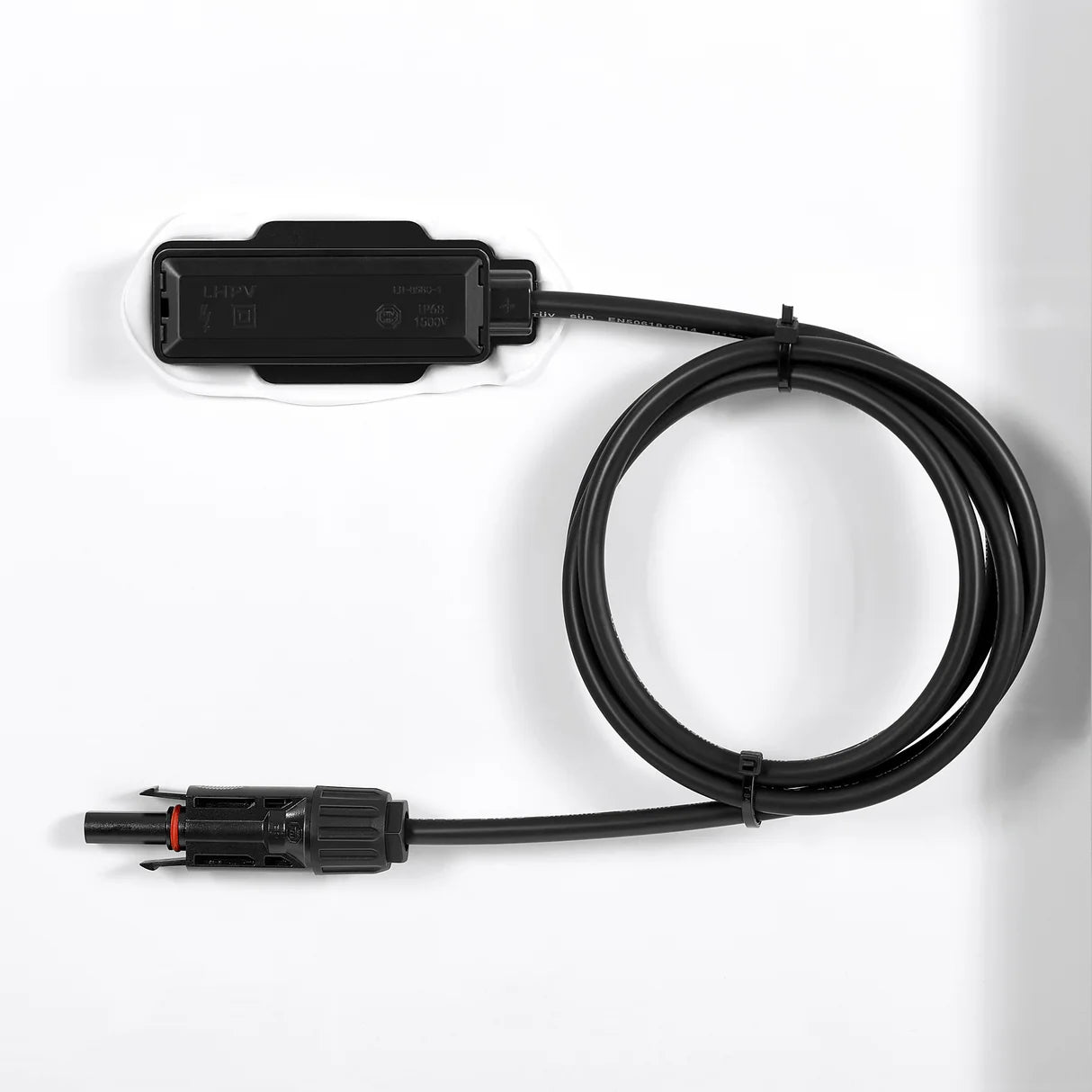

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

Specifications

• Model: RS-M220
• Maximum Power(Pmax): 220W
• Maximum Power Voltage(Vmp): 18.3V
• Maximum Power Current(Imp): 12.0A
• Open Circuit Voltage(Voc): 22.1V
• Short Circuit Current(Isc): 12.5A
• Maximum System Voltage(Vmax): 1500 VDC
• Temperature Range: -40~ +185℉
• Weight: 23.7lb (10.7kg)

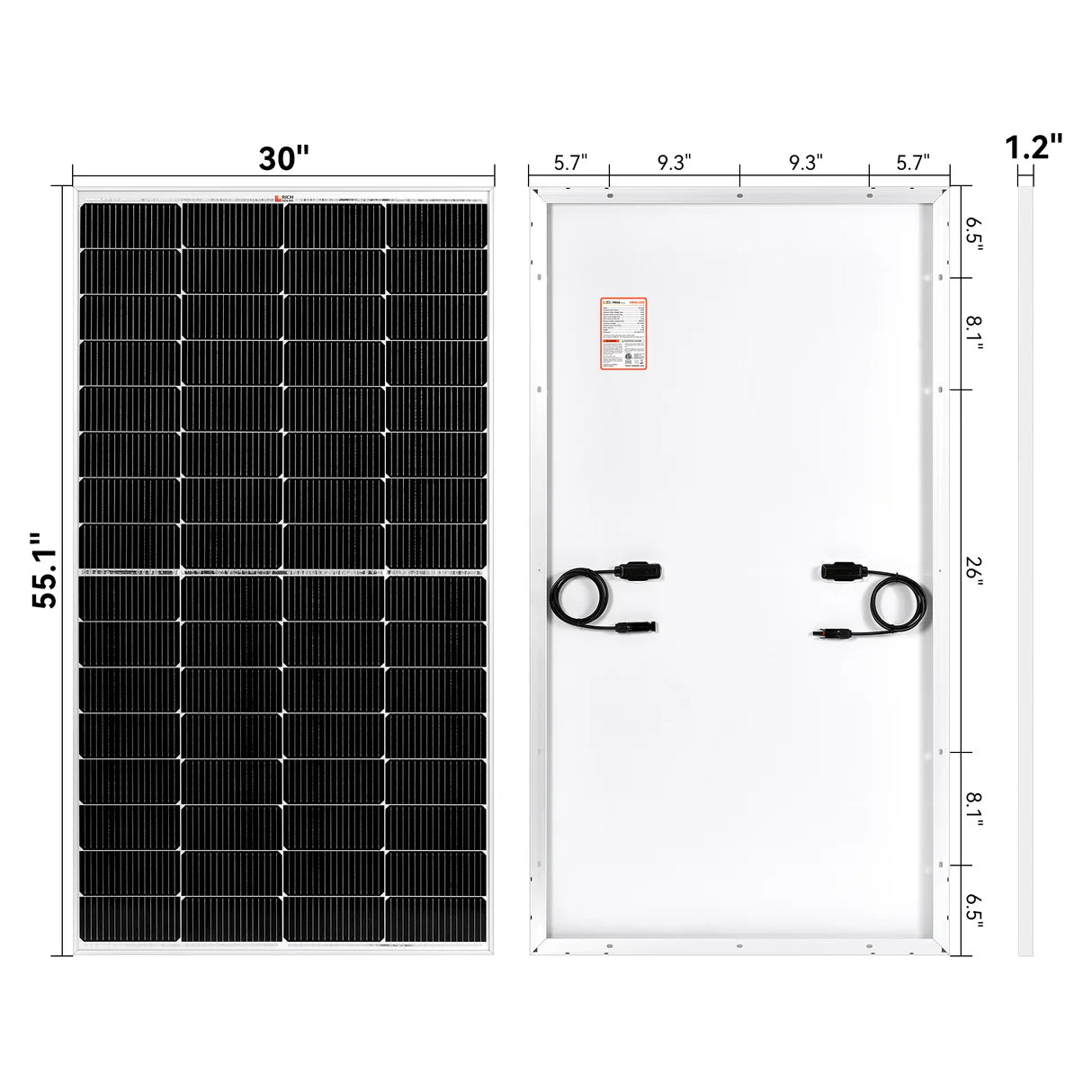

• Dimensions: 55.1x30.0x1.2in (1400x760x30mm)
