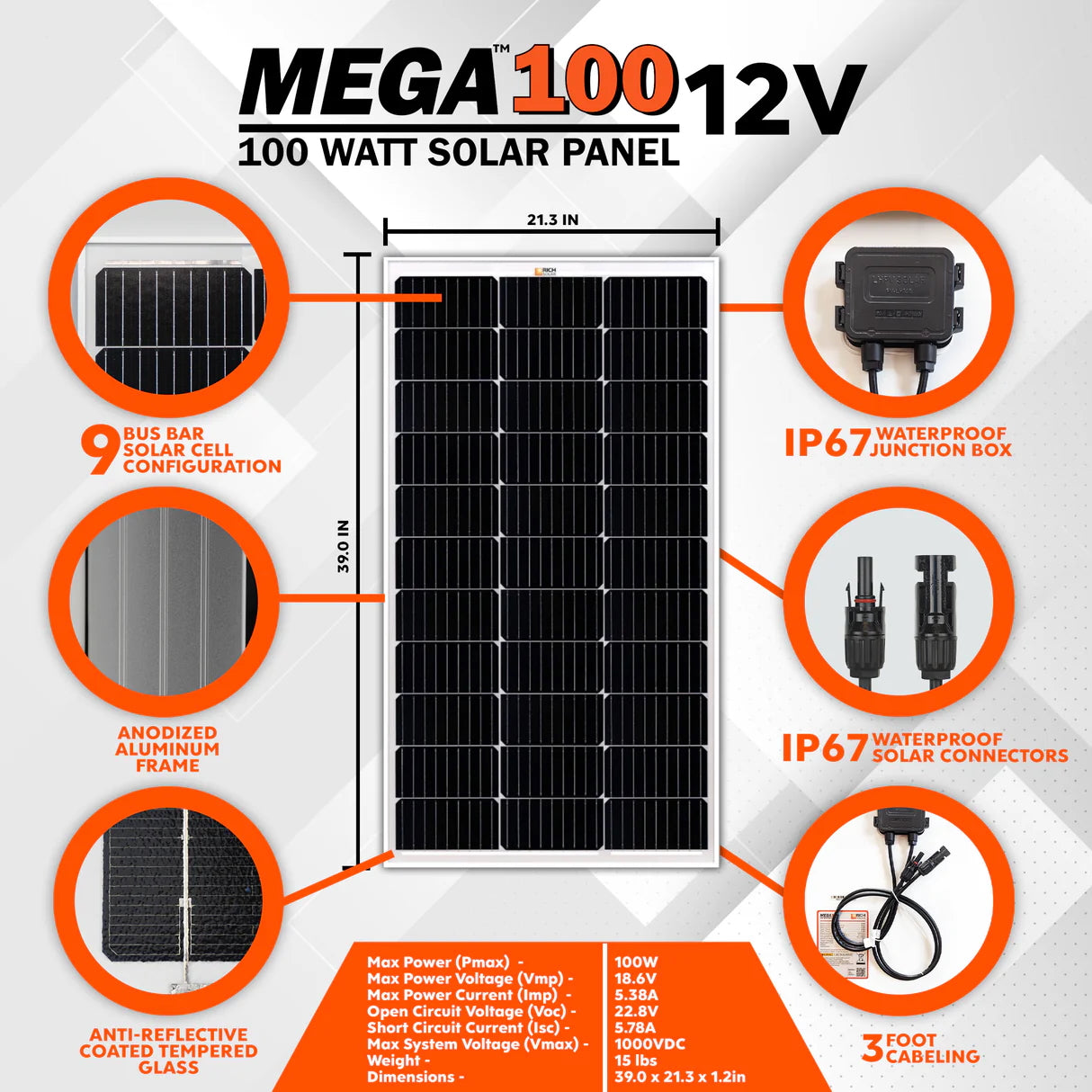

MEGA 100 | 100 Watt Solar Panel

About This Product

Features

• 12V off-grid solar panel.
• 0~+5W guaranteed positive power output.
• IP67-rated.
• Built with strong tempered glass and aluminum frame.
• Certified to withstand challenging environmental conditions.
• Excellent low light performance on cloudy days, mornings and evenings.

Installation

• Easy installation and handling for various applications.
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
• Compatible with on-grid and off-grid inverters.

Warranty

• 25-year output warranty.
• 10-year workmanship warranty.

Built-in Components

• RICH SOLAR 100 Watt Monocrystalline Solar Panel
• Panel Leads (Pair): 12AWG, 3FT each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

Specifications

• Maximum Power(Pmax): 100W
• Maximum Power Voltage(Vmp): 18.6V
• Maximum Power Current(Imp): 5.38A
• Open Circuit Voltage(Voc): 22.8V
• Short Circuit Current(Isc): 5.78A
• Maximum System Voltage(Vmax): 1000VDC
• Weight: 15 lb
• Dimensions: 39.0 x 21.3 x 1.2 inches
