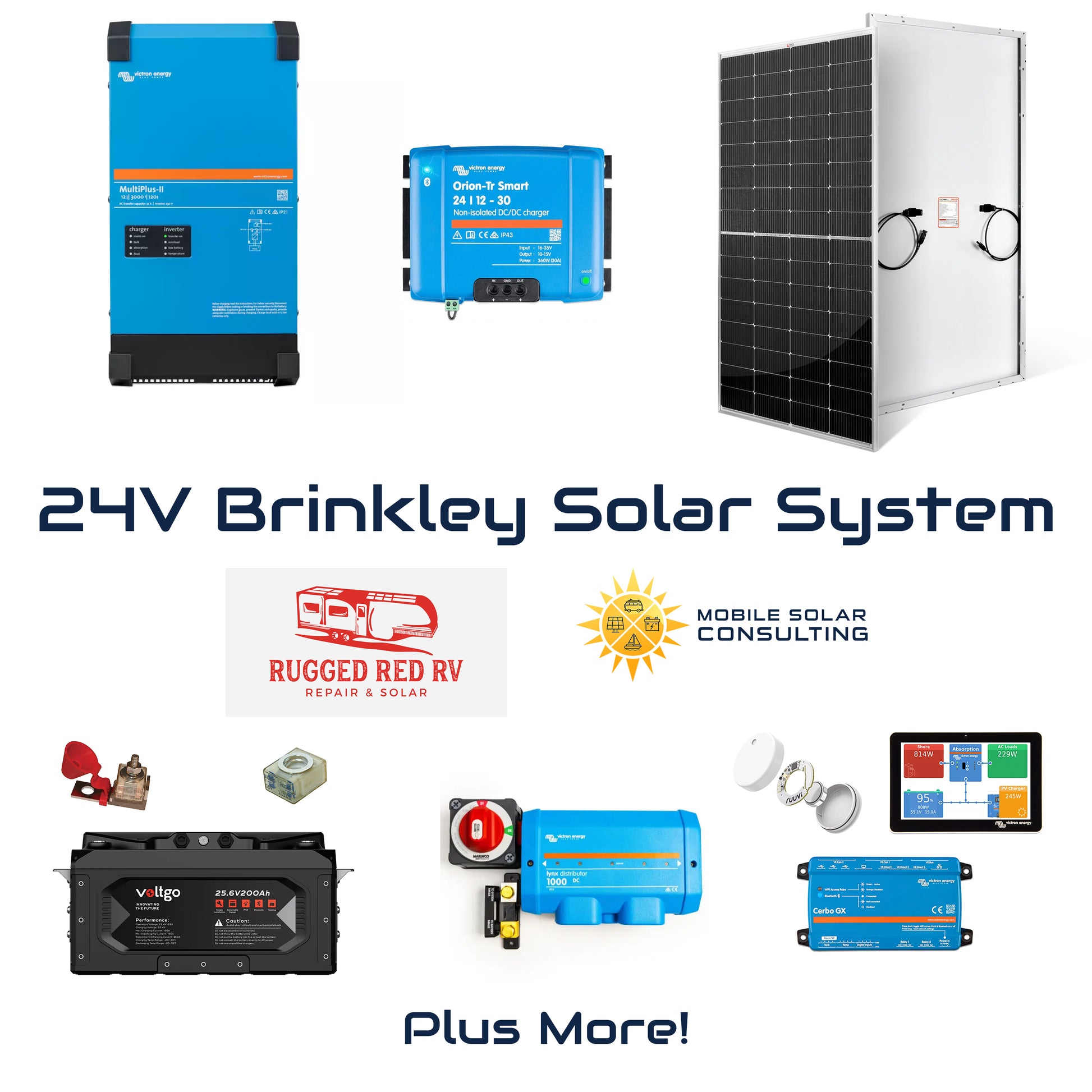

24V Brinkley Solar System

About This Product

What is included in all packages:

• Victron MultiPlus II, 2x120, 24V
• 3 x WAGO Pluggable pairs
• Clean Install Bundle
• Power In add-on kit
• Lynx Power In
• Orion-Tr Smart 24/12-30A DC-DC Charger (for charging 12V RV battery)
• 40A EGIS Breaker
• 2 x 30A PV breakers with 1 enclosure
• Upgraded Monitoring Bundle (Cerbo MK2 + Touch 70 + Wall Mount + Ruuvi Tag)
• 1 x RJ45 Cable – 3M
• 1 x VE.Direct Cable – 3M
• 25ft HDMI and 25ft USB extension
• All wire and lugs (TBD)
• 2 x 24V interior fans
• Pack of 6 WAGO 3 pin connectors
• Single 8x8x4” Junction Box

What is included in Model G package:

• 6 x 200W 12V panels
• 6 x Z brackets (1.25” silver)
• 2 x SmartSolar 150/45
• 100’ Solar Extension Cable Set
• 2 x 5 packs of MC4 connectors
• 4 x Tubes of Alphathane
• 2 x VE.Direct Cables – 3M (additional)

What is included in Model Z package:

• 8 x 250W 24V panels
• 8 x Z brackets (1.25” silver)
• 1 x 2-to-1 Branch Connector
• 1 x SmartSolar 100/20
• 1 x SmartSolar 250/85
• 100’ Solar Extension Cable Set
• 2 x 5-pack of MC4 connectors
• 5 x Tubes of Alphathane
• 1 x RJ45 Cable – 3M (additional)
• 1 x VE.Direct Cable – 3M (additional)

Note: This is a preconfigured package. We include all parts needed to assemble the system except for wire and lugs. After purchase, a diagram will be made for each customer’s system (free of charge). Once finished, Mobile Solar Consulting will send an invoice for all wire spools, lugs, and heat shrink at that time. Customers are required to purchase these from Mobile Solar Consulting at the prices listed on our website. Miscellaneous materials such as cable glands, split loom, electrical tape, zip ties, cable clamps and more will be provided for a flat fee at the time of installation.
